PLC Automatically Controlled Advance Rasing Film Vacuum Cooker For Gummy Candy Specifications :
|Payment Terms||L/C T/T Western Union|
|Keyword||Advance Rasing Film Vacuum Cooker, Gummy Machine, gummy kitchen system|
PLC Automatically Controlled Advance Rasing Film Vacuum Cooker For Gummy Candy Detail Introduction :

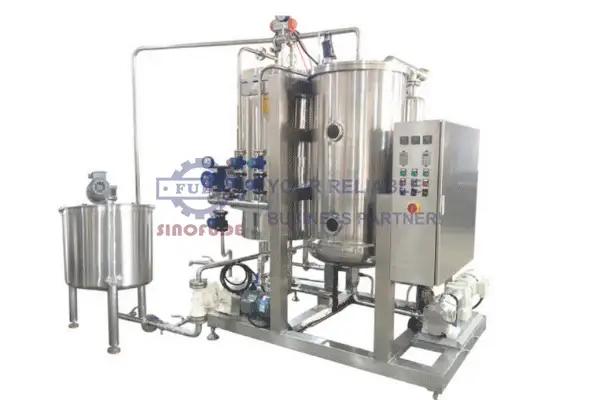

Advance Rasing Film Vacuum Cooker
SINOFUDE is proud of the advance rasing film vacuum cooker design with a sanitary and easy washing structure for Gummy candy with CBD or THC or Vitamin and Minerals. Etc functional products. It is a part of the Gummy Machine. It is ideal equipment that can fast cooking the good quality gummies with the saving of both the manpower and the space occupied. Advance rasing film vacuum cooker is made up of syrup dosing pump, heating rasing film with scrapper, vacuum evaporator, discharge pump, temperature and pressure meter, PLC controller etc. All these parts are installed in one machine and connected with pipes and valves. This advance rasing film vacuum cooker has the advantage of large capacity from 300kg till 1000kg/h, high transparent of gummy candy mass without air bubble inside, easy operation. It is automatically controlled by PLC, touch screen and frequency inventer, heating method can be steam heating or induction heating as optional.
The advance rasing film vacuum cooker was designed according to pharmaceutical machine standard, higher level sanitary structure design and fabrication, all stainless steel materials are SUS304 and SUS316L in the line and it can be equipped with UL certified or CE certified components for CE or UL certificated and FDA proved.
Advance Rasing Film Vacuum Cooker Technical Specifications:
Total power: 11.5kW (steam), 80~100kW (induction)
Steam requirement: <500kg/h；0.7MPa
Vacuum: upto -0.04MPa
Dimension: L1600 x W1400 x H2100mm
