500-1000L High-Grade Chocolate Conche Refiner Machine, Refining Mixing Chocolate Conching Machine Specifications :
| keyword | Chocolate conche, chocolate refiner, ball mill machine, chocolate paste making machine, chocolate refining machine, chocolate conching machine |
500-1000L High-Grade Chocolate Conche Refiner Machine, Refining Mixing Chocolate Conching Machine Detail Introduction :

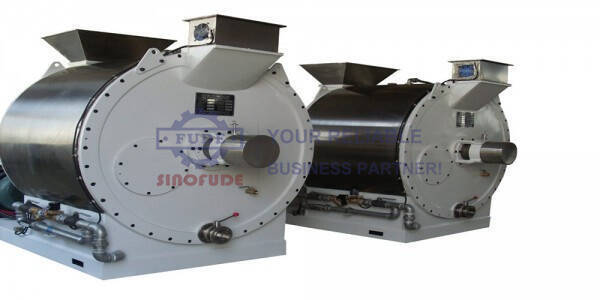

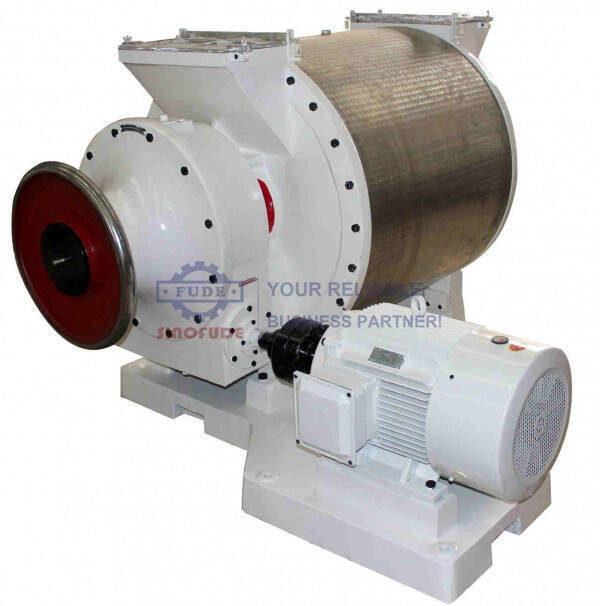

Chocolate Conche refiner Machine
SINOFUDE New Developed The chocolate (Conche) milling machine is one of the major equipment which is used for the fine grinding of chocolates, and it is also suitable for the fine grinding of soybean flour, as well as the daily used industrial chemicals for high-standard granularity. The fine grinding time is about 16~22 hours, the average granularity can achieve 20-25 micron. This machine has many merits such as tight structure, easy operation, convenient maintenance, little one-off investment, and so on. It is the key equipment for the fine grinding of chocolate paste materials in the chocolate production line. And it is suitable especially for the technical request of chocolate and candy factory.
Parameter:
| Model | CJM500 | CJM1000 |
| Maximum capacity(L) | 500 | 1000 |
| Grinding Fineness(micron) | 20~25 | 20~25 |
| Main Axle Rotating Speed(rpm) | 33 | 35 |
| Grinding time(h) | 16~22 | 16~22 |
| Main motor power(kW) | 15 | 18.5 |
| Electrical heating power(kw) | 5 | 6 |
| Weight(kg) | 2872 | 4050 |
| Outside dimensions(mm) | 2100×1860×1280 | 2827×1280×1520 |
Configuration：

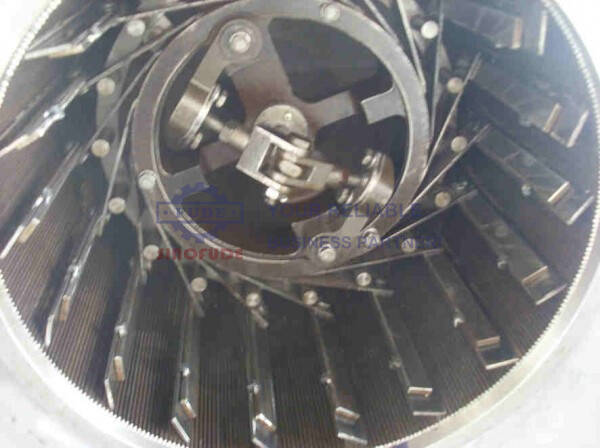

Blade and lines material：65#Mn
Electrical motor: Chinses superior brand
Electrical components: Chinses superior brand
| Model | CJM2000 | CJM3000 |
| Maximum capacity(L) | 2000 | 3000 |
| Grinding Fineness(micron) | 20~25 | 20~25 |
| Main Axle Rotating Speed(rpm) | 35 | 35 |
| Grinding time(h) | 16~22 | 16~22 |
| Main motor power(kW) | 42 | 55 |
| Auto tighten power (kW) | 1.1 | 1.1 |
| Tighten style | Electric tighten | |
| Water pump power(kW) | 0.5 | 0.5 |
| Electrical heating power(kw) | 9 | 9 |
| Weight(kg) | 5300 | 8500 |
| Outside dimensions(mm) | 3320×2000×1950 | 4200×2000×1950 |
