Automatic Multifunctional Soft And Hard Biscuit Production Line High Efficiency Specifications :
| Payment Terms | L/C T/T Western Union |
Automatic Multifunctional Soft And Hard Biscuit Production Line High Efficiency Detail Introduction :
Automatic Multifunctional Biscuit Production Line
1. Multifunctional biscuit production line
Can produce various types of crisp biscuits, tough biscuits, three-color (sandwich) biscuits, etc.
Machine configuration:

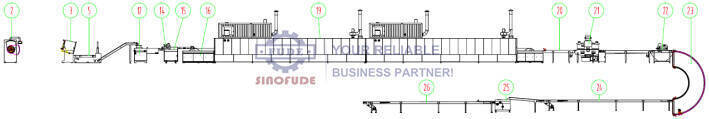

1. Vertical kneading machine → 2 horizontal kneading machine → 3 dumping machine → 4 falling hopper → 5 dough conveyor → 6 feeding machine → 7 laminator → 8 rolling machine → 9 remaining material recovery machine → 10 Roll cutting machine → 11 separator → 12 roll printing machine → 13 crisp powder blanking machine → 14 spreader → 15 furnace machine → 16 mesh belt drive machine → 17 mixed oven (direct-fired oven + hot air Convection circulation oven) → 20 out of the oven → 21 fuel injection machine → 22 vibration spreader → 23 turning machine → 24 cooling conveyor → 25 star wheel cake sorting machine → 26 cake picking conveyor
2. Automatic Hard biscuit production line
Can produce various types of hard biscuits such as cracker, soda biscuit, etc.
Machine configuration:

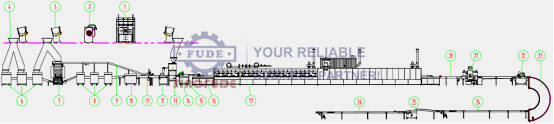

1. Vertical kneading machine → 2 horizontal kneading machine → 3 dumping machine → 5 dough conveyor → 7 laminator → 8 rolling machine → 9 residual material recovery machine → 10 rolling cutter → 11 separator → 14 Spreader → 15 furnace machine → 16 mesh belt drive machine → 18 electric oven → 20 furnace machine → 21 fuel injection machine → 22 vibrating feeder → 23 turning machine → 24 cooling conveyor → 25 star wheel Cake machine → 26 cake picking conveyor
3. Automatic soft biscuit production line
Can produce various types of soft biscuits, like Marie Biscuit, Glucose Biscuit etc..
Machine configuration:
2 horizontal dough mixer → 3 dumper → 5 dough conveyor → 12 roll printing machine → 14 spreader → 15 furnace machine → 16 mesh belt drive machine → 18 hot air convection circulating oven → 20 discharge machine → 21 Fuel injection machine → 22 vibrating spreader → 23 turning machine → 24 cooling conveyor → 25 star wheel cake sorting machine → 26 cake picking conveyor
| Model | BBG250 | BBG400 | BBG600 | BBG800 | BBG1000 | BBG1200 | BBG1500 |
| Capacity | 50-80kg/H | 100-200kg/H | 200-400kg/H | 400-600kg/H | 600-1000kg/H | 1000-1500kg/H | 1500-2000kg/H |
